Strain Gauge Scale

Glimpse subteam, Cornell GreenClub

College of Agriculture and Life Sciences, Cornell University · Ithaca, NY ·

Cornell GreenClub

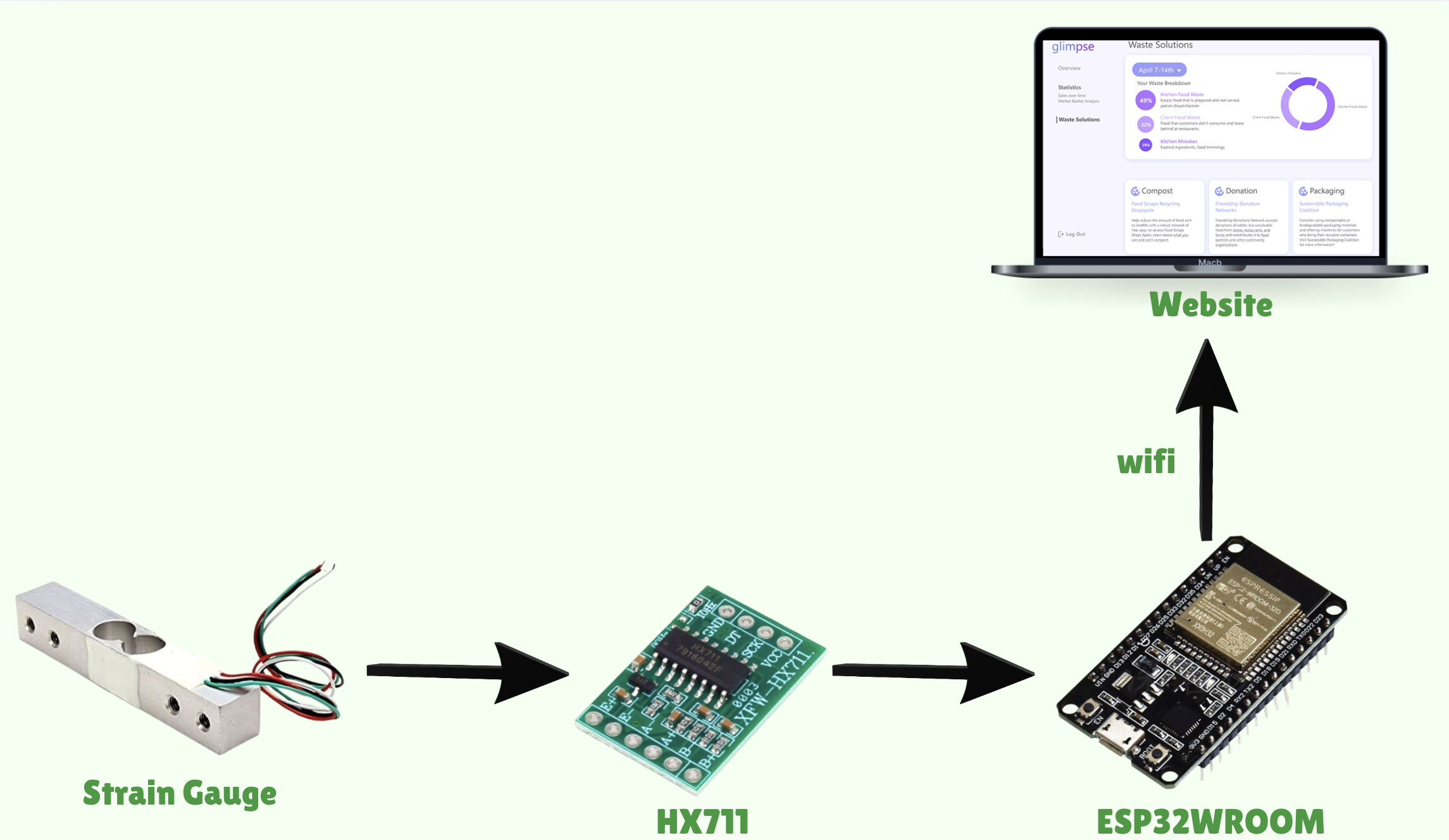

How it fits together

System flow: strain gauge to HX711 module to ESP32 WROOM board, then Wi-Fi to a laptop showing a Glimpse website dashboard

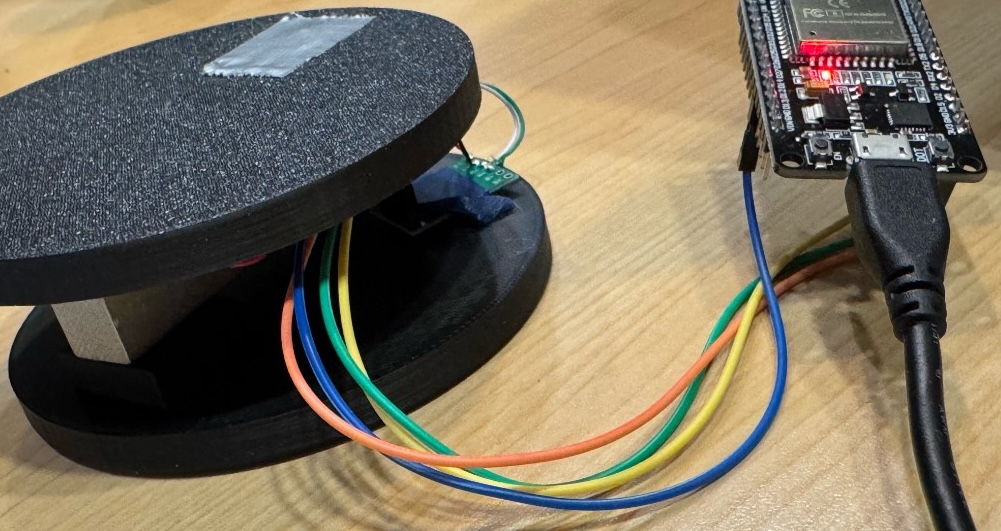

Bench prototype

Strain gauge between casing, HX711, and ESP32 on the bench.

Prototype scale with circular plates, strain gauge bar, HX711 module, and ESP32 dev board wired together on a bench

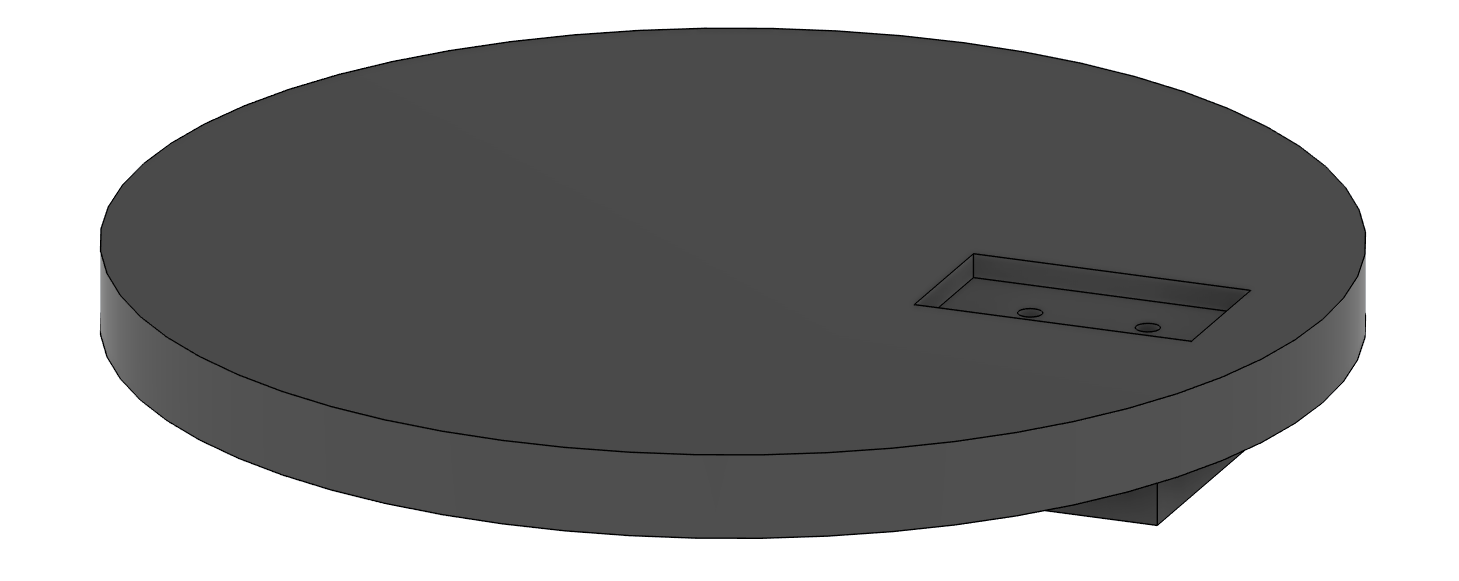

CAD

Casing supporting pocket and mounting modeled in Fusion 360.

Isometric CAD render of a circular dark base plate with a rectangular pocket and two small circular features for mounting
